Nexi Gateway

Smarter Industrial Wireless Data Collection

nexi gateway6

Seamless data transmission from wireless sensors to your central platform

nexi gateway3

Supports Zigbee sensors; Ethernet, Wi-Fi, 4G, and 5G network connections

nexi gateway5

Industrial-grade protection for harsh environments

nexi gateway2

Built-in edge computing and local data processing

nexi gateway4

Fast deployment across petrochemical, steel, cement, mining, and other industrial sectors

nexi gateway1

Enables real-time monitoring, predictive maintenance, and operational efficiency

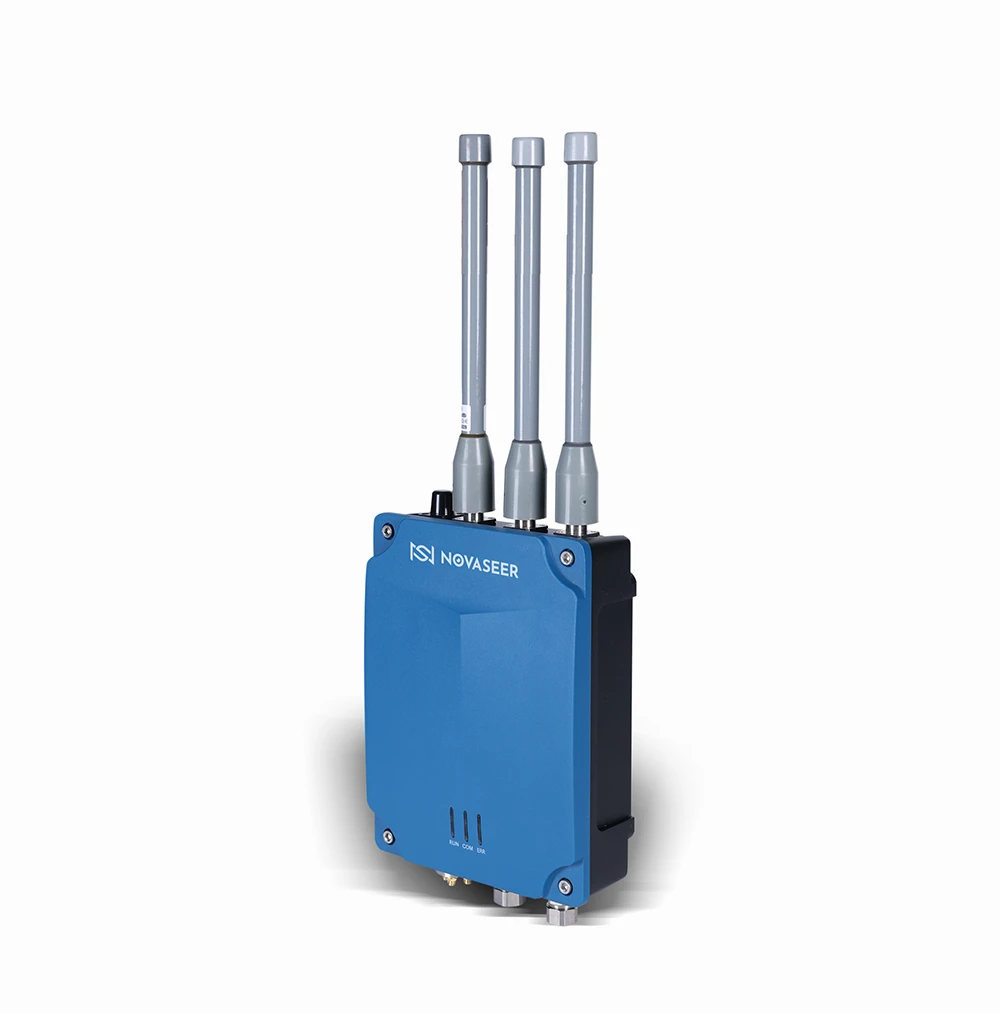

Product Picture and Dimension

nexi gateway compressed
wireless data collector2
wireless data collector3

Main Parameters

Parameters Specification Remark
Physical
Dimension 260mm × 203mm × 87mm Length × Width × Height
Weight About 2.5kg
Shell Material Cast aluminum
Installation Method Wall-mounted or pole-mounted Mounting fixtures or accessories are required
Ambient Temperature -40°C to 70°C
Storage Temperature -50°C to 85°C
Protection Grade IP66
Communication
Communication With Sensor Zigbee: 2.4GHz IEEE 802.15.4
Communication With Network Ethernet, WiFi, 4G, 5G (Optional) Options: Ethernet+4G; Ethernet+5G; Ethernet+WiFi; Ethernet
Industrial Communication Interface RS485 Optional
Power
Power Supply 100~240VAC (CE/UKCA/FCC/KC)
100~277VAC (ATEX/IECEx/KCs)
9~36VDC
Battery: 3.6VDC
Battery Option 32 × 12Ah Model: RH305-BAT
Power Consumption <10W
Basic
Storage (EMMC) 8GB (CPU1) + 8GB (CPU2) Can be expanded
Support Sensor Number 60
Others
Certification CE / UKCA / ATEX / IECEx / FCC / KC / KCs / IC
Identification Ex II 3G Ex ec II* T6 Gc (ATEX)
Ex ec II* T6 Gc (IECEx/KCs)		 5G: IIA
4G/WIFI: IIC
